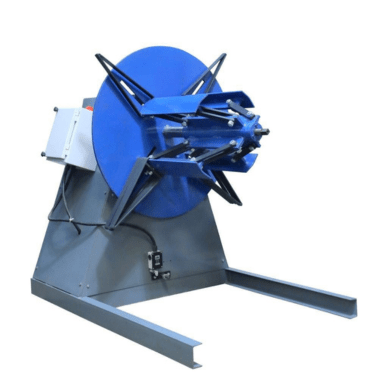

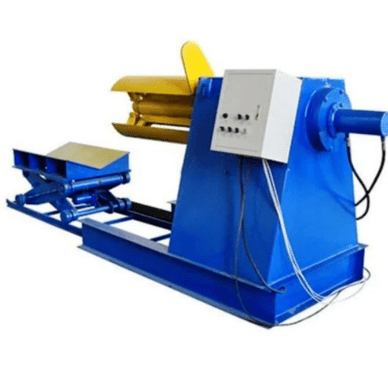

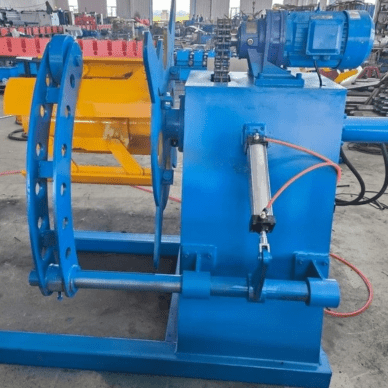

5 – TON HYDRAULIC DECOILER
Gopi Machines & Tools
Gopi Machines & Tools is a leading manufacturer of 5-Ton Hydraulic Decoilers, designed for precision, efficiency, and durability in coil handling applications. Our 5-ton hydraulic decoiler is built to handle heavy-duty operations with ease, ensuring smooth and controlled unwinding of coils. Equipped with a robust hydraulic system, it offers effortless coil loading and adjustment, reducing manual effort and increasing productivity. The motorized drive system, coupled with VFD-based speed control, allows for seamless operation, while advanced safety features ensure reliability in high-performance environments. Whether used in sheet metal processing, stamping, or roll-forming industries, our 5-ton hydraulic decoiler is engineered to deliver exceptional performance, making it the ideal choice for industries that demand efficiency and precision.
TECHNICAL SPECIFICATIONS
| Brand | Gopi Machine Tools |
|---|---|
| Capacity | Up to 5 Ton or 10 Ton |
| Decoiler Type | Cantilever (Side Mounting) |
| Coil Outer Diameter | Max. Ø1300 mm |
| Coil Inner Diameter | Ø480 – Ø520 mm |
| Coil Length | Up to 1500 mm |
| Overall Dimensions | 3000 x 1700 x 1500 mm (L x W x H) |
| Clamp Mechanism | Wedge Type |
| Driven | Electric Motorized Rotation |
| Power | 3 HP – Three Phase |
| Expanse Collapse | By Hydraulic Jack |
| Sensor | Proxy Sensor |
| Speed Control System | VFD (Variable Frequency Drive) |
| Structure | MS C Channel |
ELECTRICAL SPECIFICATIONS
| Feature | Description |
|---|---|
| Auto / Manual Button | Yes |
| Speed Controller | Yes |
| Reverse / Forward Button | Yes |
| Expanse / Collapse Buttons | Yes |
| Highly Detector Sensor for All Types of Metals | Yes |
| Flexible Up-Down & Lightweight for Portable Assembly | Yes |
