(POP) PATTI MACHINE
Gopi Machines & Tools

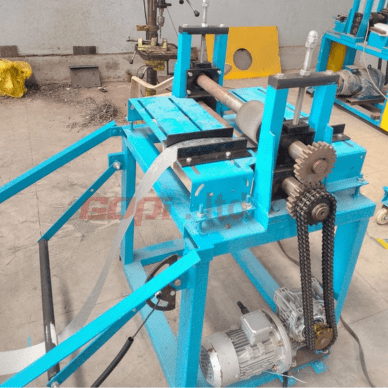

Gopi Machines & Tools is a leading manufacturer of POP Patti Machines, specializing in high-performance and precision-engineered solutions for the Plaster of Paris (POP) strip manufacturing industry. Our machines are designed for efficient, high-speed production, ensuring uniform thickness, smooth finishing, and superior durability of POP patti strips. Built with robust construction, advanced automation, and user-friendly controls, our machines offer high productivity, minimal maintenance, and consistent quality output. We are the best Patti Machine Manufacturer in Gujarat. At Gopi Machines & Tools, we are dedicated to innovation and excellence, making us the preferred choice for businesses seeking reliable and cost-effective POP patti manufacturing solutions.
Technical Specification
| Specification | Details |
|---|---|
| Brand | Gopi Machine Tools |
| Product Code | PA103-00-000-R00 |
| Type of Material | Galvanized Iron (GI) |
| Yield Strength | Up to 550 MPa |
| Sheet Thickness | 0.4 to 0.7 mm |
| Input Width Range | Up to 115 mm (Max.) |
| Length of Sheet | No Limit |
| Machine Production Speed | 12 m/min (3 profile per min.) |
| Total Power Required | 2 HP + 1 HP Pattern Station (Three Phase) |
| Forming Process | Cold Forming |
| Automation Based On | PLC Based – Fully Automatic |
| Decoiler Type | Manual with Disc Brake |
| Decoiler Capacity | Up to 500 kg |
| Coil Outer Dia. | Max. Ø1000 mm |
| Coil Inner Dia. | Ø420–Ø520 mm |
| Coil Length | Up to 200 mm |
| Coil Mounting Type | Side Mounting (Cantilever) |
| Overall Dimensions | 800 x 800 x 1000 mm (L x W x H) |
| Clamp Mechanism | Hinge Type |
| Structure | MS C Channel |
| Rollers Material | EN-31 Full Hardness |
| Hardness | 50 to 60 HRC |
| Coating | Hard Chrome |
| Process | CNC Turning |

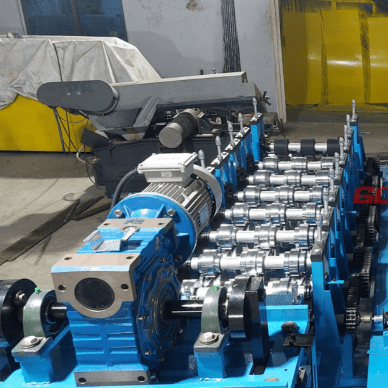

| No. of Station | 8 Station + 1 Pattern Roll Station |
| Drive | Gear Drive and Chain Drive |
| Shaft Material | EN-8 (With grinding) |
| Die Material | WPS & D2 Material |
| Blade Hardness | 55 to 60 HRC |
| Structure | Four Column Design |
| Pattern Roll Station | Auto On-Off Motorized |
| Cutting Unit | Automatic Mechanical |
| Hydraulic Oil & Maintenance | Not Required |
Electrical Specification
| Specification | Details |
|---|---|
| LED Display | Yes |
| Alarms & Indicators | Yes |
| Production Report | Yes |
| Production Status Screen | Yes |
| Batch Wise Length Setting | Yes |
| Speed Control Regulator | Yes |
| Auto / Manual Change Over | Yes |
Why Choose Gopi Machine Tools for PATTI MACHINES
At Gopi Machine Tools, we take pride in being a leading PATTI MACHINE manufacturer in India. Here’s why we are the preferred choice:
-
Advanced Technology: Our machines are equipped with the latest technology for high precision and efficiency.
-
Superior Quality: We use top-grade raw materials to ensure durability and durable performance.
-
Customization Options: We offer tailor-made solutions to meet specific industrial requirements. We are the best Patti Machine Supplier in Hyderabad.
-
Competitive Pricing: Our machines are affordably priced without compromising on quality.
-
After-Sales Support: We provide excellent customer support, including installation, training, and maintenance services. We are the best manufacturer of Patti Machine in Vishakhapatnam.
Applications of PATTI MACHINES
PATTI MACHINEs are used across various industries, including:
-

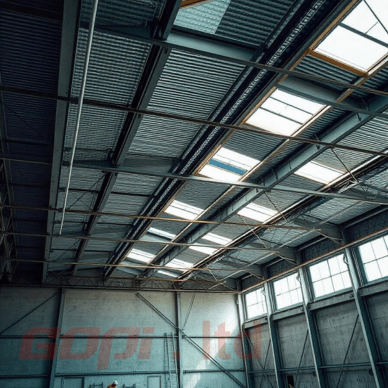

Construction Industry: For making metal strips used in structural frames and roofing.
-
Automotive Industry: In the production of vehicle body parts and chassis components.
-
Manufacturing Units: Used for processing raw metal sheets into refined strips.
-
Furniture Industry: In the fabrication of metal-based furniture and fixtures.
Choosing the Right PATTI MACHINE
When selecting a PATTI MACHINE, consider the following factors:
-
Production Volume: Choose a machine that matches your production needs.
-
Material Type: Ensure the machine can handle the type of metal you work with.
-
Automation Level: Decide between manual, semi-automatic, or fully automatic based on your budget and requirements.
-
Budget: Invest in a machine that provides the best value for your money.
-
Brand Reputation: Opt for a trusted manufacturer like Gopi Machine Tools for reliability and quality assurance.
Maintenance Tips for PATTI MACHINE
To ensure your PATTI MACHINE operates efficiently, follow these maintenance tips:
-
Regular Cleaning: Keep the machine clean from dust and debris.
-
Lubrication: Apply oil to moving parts to prevent wear and tear.
-
Inspect Blades: Check the cutting blades regularly and replace them when dull.
-
Monitor Power Supply: Ensure stable voltage to avoid electrical issues.
-
Schedule Professional Servicing: Periodic maintenance by experts will extend the machine’s lifespan.
Conclusion
PATTI MACHINES are essential tools in metalworking industries, offering efficiency and precision in metal strip production. We are the best POP Patti Machine Manufacturer. If you are looking for a high-quality PATTI MACHINE manufacturer, Gopi Machine Tools is your ultimate destination. Our advanced machinery, competitive pricing, and excellent customer support make us the top choice for all your metal processing needs.
For more details on our PATTI MACHINEs, feel free to contact Gopi Machine Tools today.
